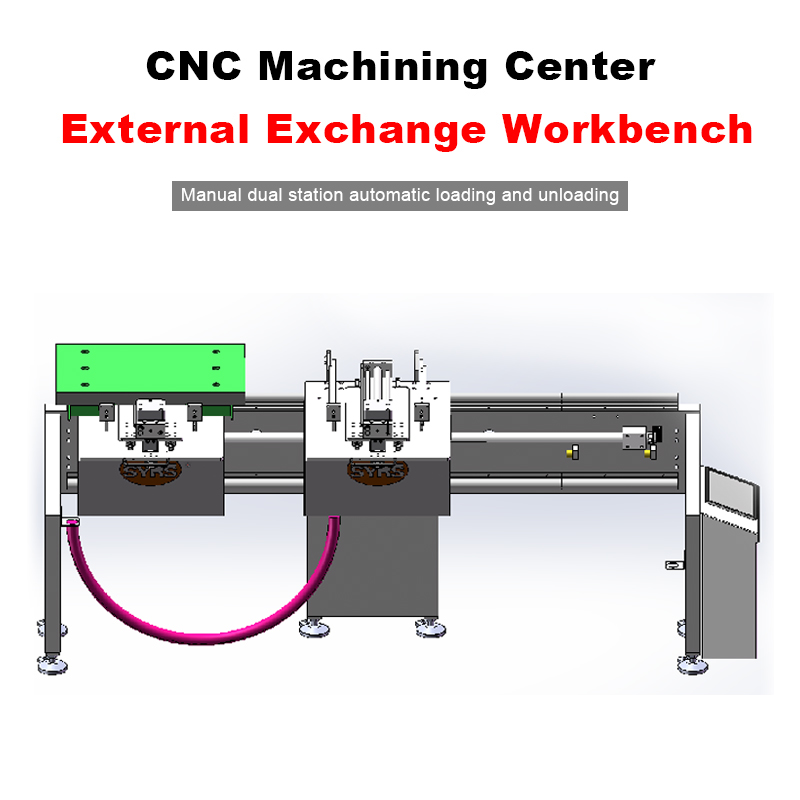

Manual dual station external exchange workbench

Product features:
1. The internal positioning locking fixture adopts pneumatic zero point positioning, with a repetition accuracy of within 0.005mm. It is locked when the air is cut off and opened when the air is ventilated, with a locking force of 3 tons;
2. The tray adopts an equidistant positioning hole design, which is suitable for quick clamping and positioning of various types of fixtures.

Manual dual station external exchange workbench

The manual tray replacement system unleashes the full production potential of vertical machining centers, whether you have a large factory or the smallest workshop space. Regardless of the niche or specific processing application in your industry, manual tray replacement devices can significantly improve productivity without requiring additional operator input.
Shenyong Intelligence has always been a leader in manufacturing efficiency, collaborating with thousands of enterprises, saving a lot of work costs, time, operator labor, and spindle downtime, achieving annual profit growth of over a year. Using our manual tray replacement system, operators can easily replace trays within seconds.

Selection of manual tray quick change device system and options

We can modify the manual tray replacement system to almost any type of machine, providing various systems and designs:
● Micro tray system manual lift off
● Pneumatic air lifting system
● Front mounted shuttle tray system
● 'Receiver and Tray Only' system

Advantages of manual pallet quick change device system:
What type of manual tray replacement device is most suitable for your personalized machining center, you can rest assured that you will receive proven advanced technology. Our manual tray replacement system underwent OC testing in over 250000 tray replacements before its release and was brought to the market.
Features of using manual tray replacement device:
● Compatibility center for retrofitting with almost any brand of machine;
Up to 900 liters of capacity
Adjustable support legs for repairing eyebrows/coolant drawers
Minimize spindle downtime to achieve consistently high levels of production.
● Improve operator and machine productivity
● Hardening and grinding of positioning bushings;
● Patent technology for "dual air injection";
Multiple safety interlocks and dual palm button systems
Easily pause the work cycle and achieve JIT production
Quick tray replacement with+/-0.0025mm repeatability
