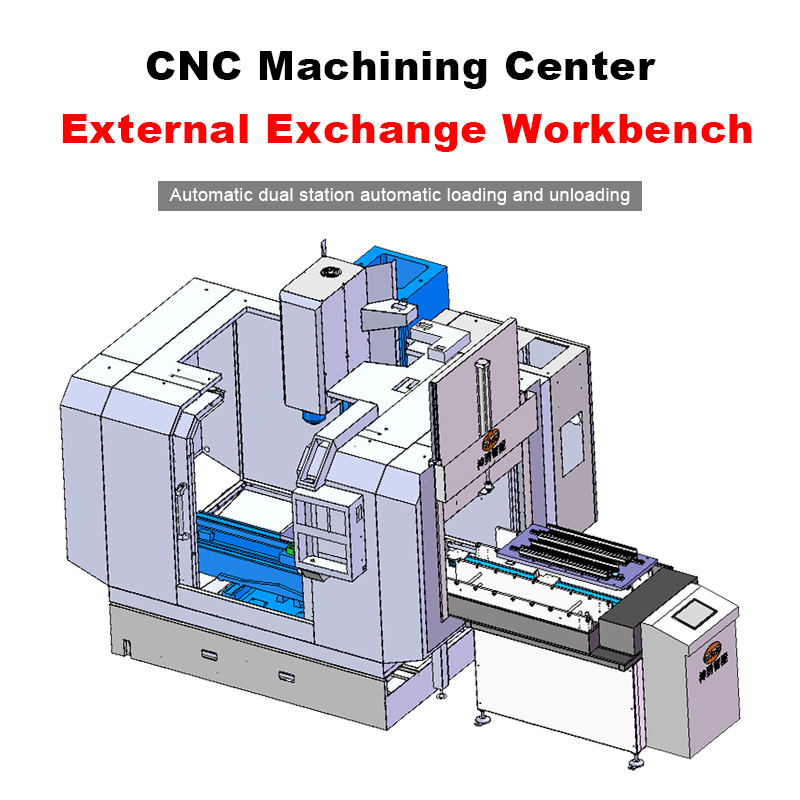

CNC Automatic Pallet Changers
Transforming the machining center into a dual workbench in seconds, significantly reducing downtime.
1. Increase the spindle rotation rate of the machine tool from 50% to over 90%;
2. Have one person simultaneously operate the multi machine (6 or above).
-
Product features:
1. The internal positioning locking fixture adopts pneumatic zero point positioning, with a repetition accuracy of within 0.005mm. It is locked when the air is cut off and opened when the air is ventilated, with a locking force of 3 tons;
2. The tray adopts an equidistant positioning hole design, which is suitable for quick clamping and positioning of various types of fixtures.Automatic dual station external exchange workbench
The automatic tray changer includes:
1. Series 16A, 227 kg capacity (evenly distributed weight) pneumatic blower receiver.
2. 22 inch x 14 inch x 1 inch (558.8 mm x 355.6 mm x 25.4mm mm) end loaded cast aluminum tray.
1 series 16 end loading shuttle unit with automatic doors and indicator lights.
(Price does not include installation, transportation, handling, and all taxes and fees)
Product features:
-When the spare tray is in the machine, load, unload, inspect parts, and set up operations.
-By using tools specifically for pallets, the setup time for repetitive tasks is reduced.
-Replace the tray in seconds with a repeatability of+/-0.0025 mm.
-Pallets are easily interchangeable between machines or departments.
-Fully integrated with CNC machine tools through the use of two M-functions.
-Heavy/large workpieces are easy to load outside the machine.
-Single shuttle system with a capacity of up to 3636 kilograms*
-Dual shuttle system with a capacity of up to 14528 kilograms*
-Work can easily be interrupted due to emergencies.
-Improve the productivity of machines and operators.
-Equipped with Mitsubishi control devices.
*Uniform distribution of part weightThe most advanced versatility:
●PLC is fully integrated with the machine.
●When the backup tray is on the machine, the operator sets the next tray. After being ready, the operator presses the "Tray Ready" button (A) and leaves to participate in other activities. When the tray is completed in the machine, the next tray is automatically fed in.
●PLC allows operators to program pallet acceleration and deceleration to optimize performance based on the weight of the fixture
(A) The cast iron receiver is directly installed on the machine tool workbench.
● (B) Hardening and grinding positioning pins to ensure
+/-0.0001 inch (. 0025 mm) repeatability.
● (C) Patented "dual air impact" blows air through and across the contact pad to remove the chip.
